Baryte beneficiation process

Baryte beneficiation processComplete equipment configuration

Jaw crusher, cylindrical washing machine, circular vibrating screen, silo, feeder, jigger, shaker, hydrocyclone, dewatering screen, etc

Baryte beneficiation process Device image

Baryte beneficiation process introduce

1、 Introduction

The Baryte beneficiation process is a process to improve the specific gravity and grade of Baryte mine. Generally speaking, the grade and specific gravity of the original Baryte mine, accompanied by other gangue and other impurities, cannot meet the requirements of industrial production, so it must be sold after the specific gravity and grade of Baryte mine are increased through the barite beneficiation process to meet the industrial requirements. The Baryte beneficiation process is mainly composed of crushers, vibrating screens, jigs, dewatering screens and other equipment. The configuration of the collective Baryte beneficiation production line must be determined according to the characteristics and actual conditions of the Baryte mine. When the mud content in Baryte beneficiation process is large, ore washing process needs to be increased.

2、 Baryte beneficiation equipment

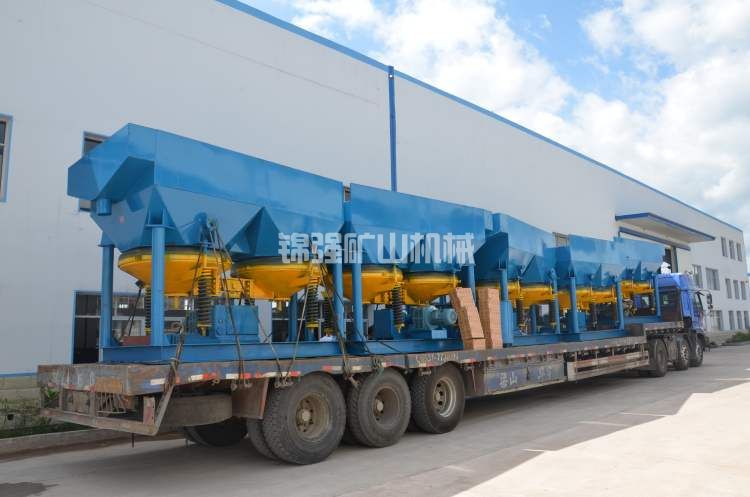

It is composed of jaw crusher, cylindrical ore washer, circular vibrating screen, bin, feeder, jigger, dewatering screen and other equipment. Baryte is first roughly crushed by the jaw crusher. The coarse crushed materials enter the cylindrical ore washer through the belt conveyor for cleaning. The cleaned materials enter the circular vibrating screen and are divided into different particle sizes. They enter the bin respectively. The materials are evenly entered into the jigger through the vibrating feeder for gravity beneficiation purification, The concentrate and tailings from the jigging machine enter the linear dewatering screen for dehydration treatment and are respectively transported to the destination.

As there are many common beneficiation methods for Baryte ore, Baryte beneficiation technology gravity concentration method is the most energy-saving, efficient and environmentally friendly beneficiation method, so it is widely used in Baryte ore plants. Baryte beneficiation technology Gravity concentration method is a Baryte beneficiation technology with gravity concentration equipment as the core, which is generally composed of crushers, vibrating screens, jigs, dewatering screens and other equipment. Some Baryte slime content is high, and washing machines need to be added.

1. Equipment for reselection method:

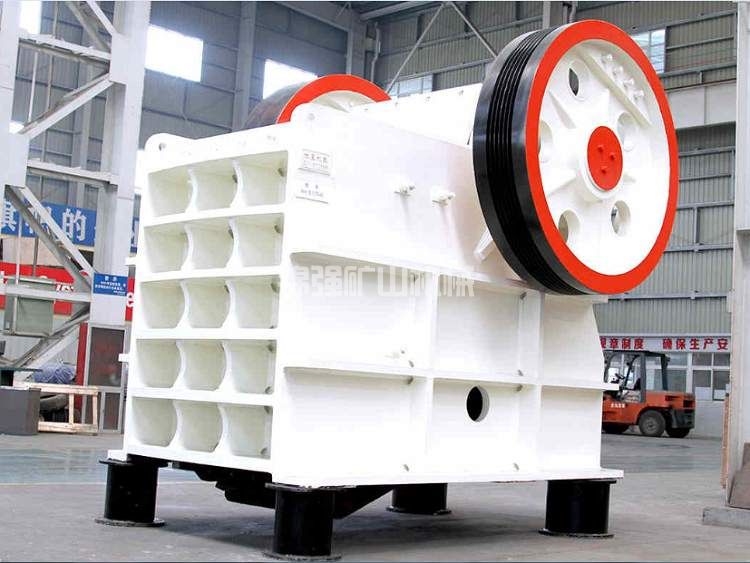

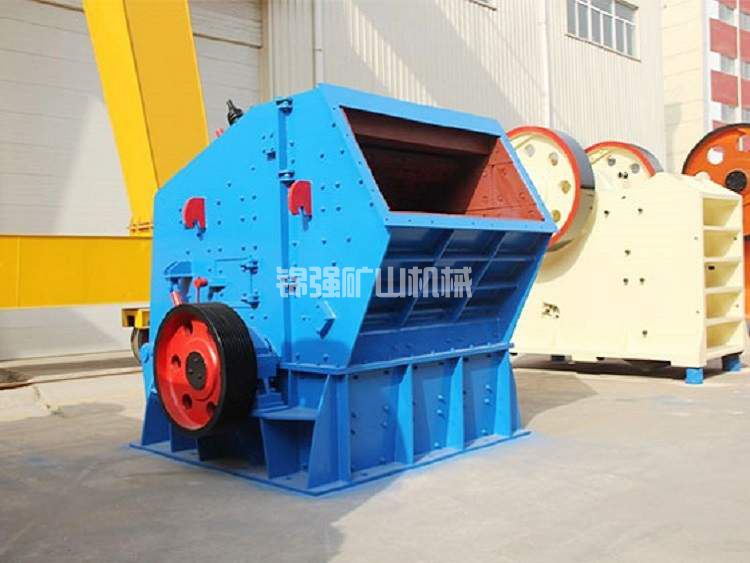

Crushing stage: jaw crusher, impact crusher, roller crusher

Selection stage: heavy medium rotary drum sorting machine, conical sorting machine, jigging sorting machine, shaking table;

Desliming stage: Hydrocyclone.

2. Flotation process Baryte equipment:

Crushing and screening stage: jaw crusher and circular vibrating screen;

Selection stage: stirring tank, flotation machine.

3. Magnetic separation process Baryte equipment.

Crushing stage: jaw crusher and circular vibrating screen;

Selection stage: magnetic separator, magnetic roller.

4. Combined process Baryte equipment.

Flotation stage: flotation cell and flotation machine;

Selection stage: jig, shaker;

Magnetic separation stage: magnetic separator and magnetic roller.
