Yunxi Shaker Table

Yunxi Shaker Table

Phone/WhatsAppContact Us
Yunxi Shaker Table

Yunxi Shaker Table Equipment and materials

Feed particle size:0.019-2mm

Equipment processing capacity:8-30t/d

Production materials:Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium, and coal, among others

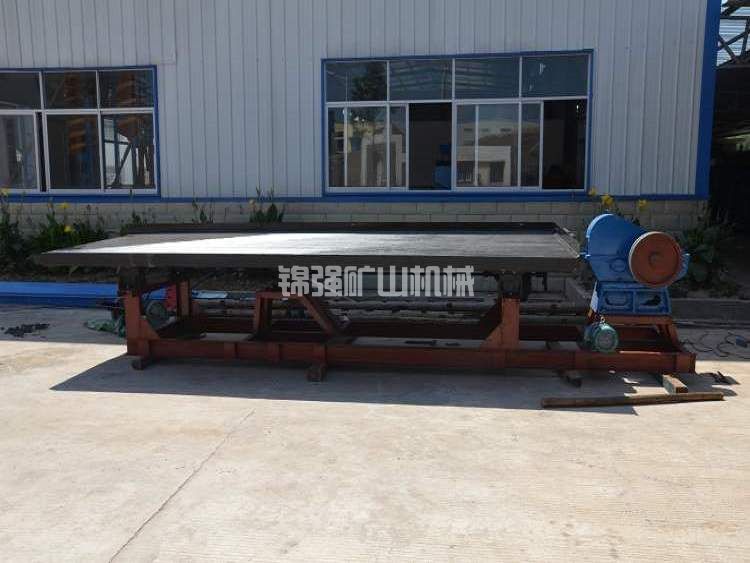

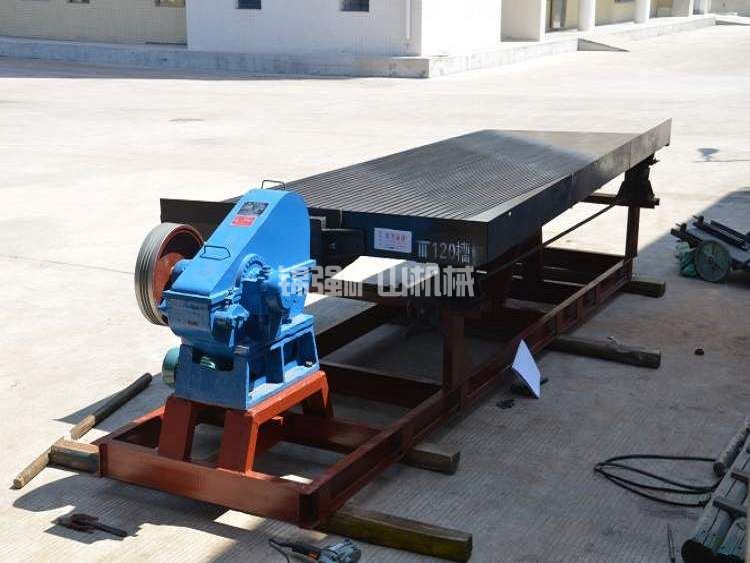

Yunxi Shaker Table Device image




Yunxi Shaker Table Equipment

1、 Introduction

Yunxi shaker Table equipment is an improvement of the original Soviet type CC-2 shaker made by Yunxi Machinery Factory of Yunnan Tin Machinery Manufacturing Co., Ltd., so it is also called Yunxi shaker. The Yunxi rocking bed equipment adopts a cam lever type bed head, while others use a cam rocker arm type to simplify the bed head. The Yunxi rocking bed frame is relatively simple, and the bed surface adopts sliding support. The Yunxi beneficiation bed surface is basically the same as the 6S rocking bed surface, but different from the 6S rocking bed, there are several slopes in the longitudinal direction. The grinding machine uses raw lacquer, a mixture of raw lacquer and forged gypsum, fiberglass or polyurethane as the wear-resistant layer, and there are three types: coarse sand bed, fine sand bed, and mineral mud bed. Generally, trapezoidal strips are laid on the coarse sand bed, serrated strips are laid on the fine sand bed, and the surface of the ore mud bed is a triangular groove.

2、 Working principle

The Yunxi rocking bed equipment has a flat bed surface, wear-resistant, sturdy, not easily deformed, easy to repair locally, asymmetric bed head movement, and a wide differential adjustment range to adapt to different feed sizes and selection requirements; The bedside mechanism works reliably, is prone to wear and tear, and does not leak oil. Its shortcomings are that the spring is installed under the bed surface, making it inconvenient to maintain and adjust the stroke (the spring needs to be loosened first when adjusting the stroke); The adjustable range of lateral slope of the bed surface is relatively small; When the lateral slope and stroke adjustment are too large, the excessive expansion and contraction of the bed head pull rod of the Yunxi rocking machine and the excessive separation of the bed center of gravity will cause the bed surface to vibrate.

3、 Advantages and Applications

The equipment of the Yunxi Shaker Table manufacturer has a good motion curve, with a smooth and moderate bed surface, a flat bed surface, resistance to moisture, acid, alkali, and deformation, stable operation, convenient operation and adjustment, obvious mineral zoning, and fast beneficiation speed. The equipment of Yunxi beneficiation shaker manufacturer is mainly used for the heavy separation of tin, tungsten, lead, bismuth, titanium, manganese, tantalum, niobium, gold and other colored, black, and rare earth ores, with a selected particle size of 2-0.019 millimeters.

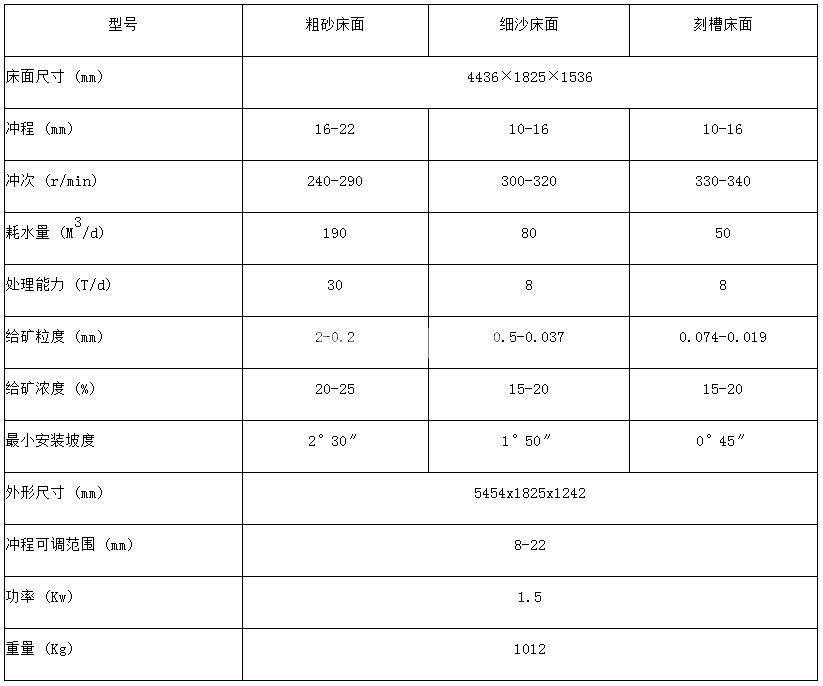

Yunxi Shaker Table Technical Parameter
